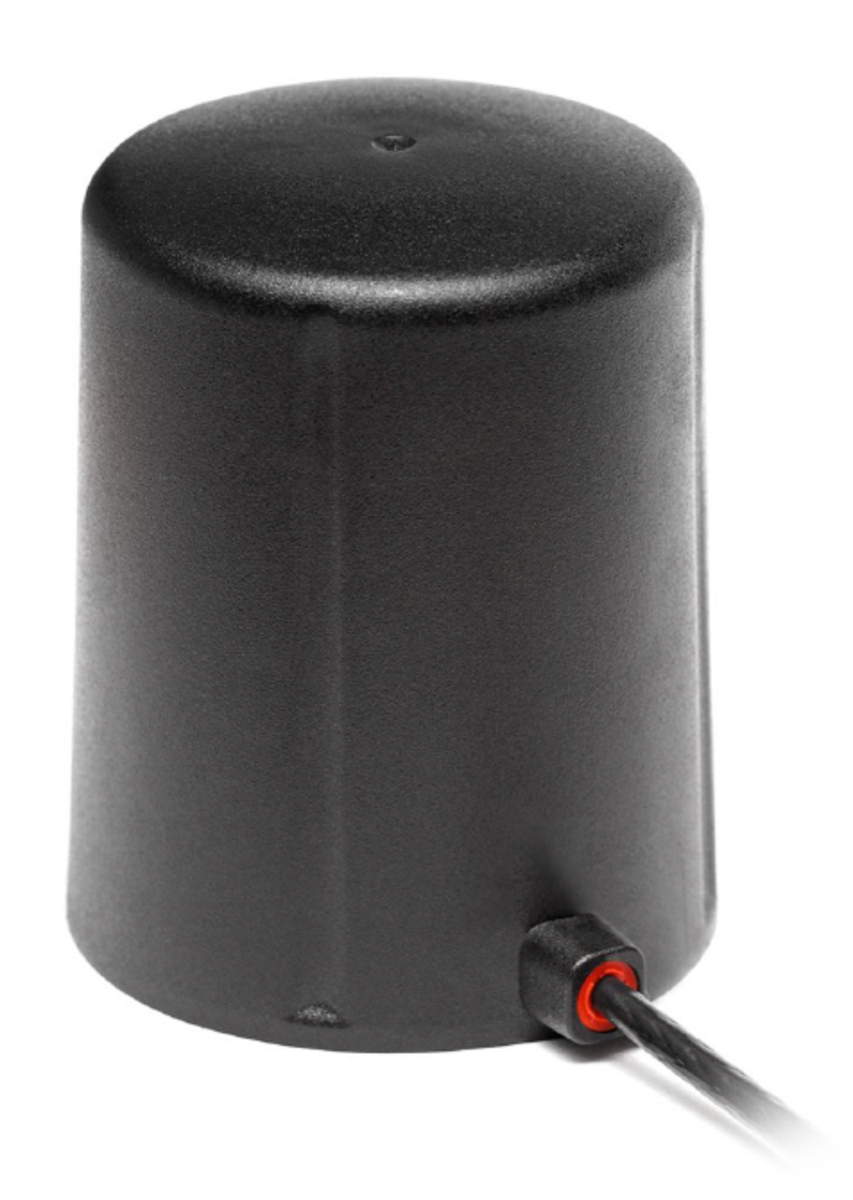

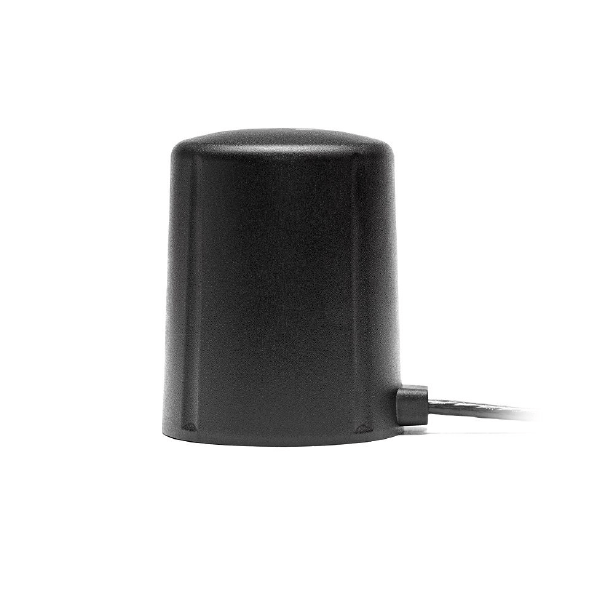

RFI 4G/LTE Magnetic Base Antenna (698-2700MHz);Black Cellular Antenna with Magnetic Base with 3M RG174 Cable terminated with SMA (M)
The LTE-MAGS Series of magnetic wideband cellular antenna delivers stable, omni-directional gain across all common 4G/LTE cellular bands from 698 MHz to 2.7 GHz.
This low-profile antenna can be used for all cellular devices. The strong magnetic base is extremely robust and uses high-quality rare earth magnets for a secure magnetic mount to any metal surface.
Key Features: Magnetic mount
• High performance
• Ground plane dependent
• IP69K
Specifications
| Brand | RFI |
| Frequency MHz | 698 - 960 / 1710 - 2170 / 2500 - 2700 |
| Tuned Bandwidth | Full. No tuning required |
| Termination | 1 x SMA male connectors |
| VSWR | <2.0:1 |
| Nominal Gain [dBi] | 1.8 dBi / 3.1 dBi / 2.9 dBi (peak) |
| Power [W] | 25 |
| Frequency | 698-2700 MHz |
| Frequency Range [MHz] | 698 - 2700 |
| Connector | SMA(M) |
| Band | SISO LTE |
| Packaging | Clear Bag |
| Technology Type | LTE, UMTS |
| Antenna Type | Omni |
| Antenna Application | Terminal Antenna |
| Frequency Band | Multi-Band 700 to 2700 |
| Antenna Configuration | SISO |
