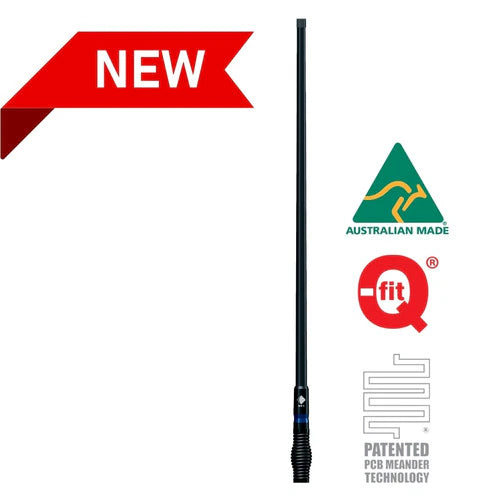

RFI CDX-TREME 7.5dBi 4G/LTE/5G Black Q-Fit® Vehicle Bull Bar Antenna - 1200mm

RFI CDX-TREME CDX8197-B 7.5dBi 4G/LTE/5G Q-Fit® Bull Bar Vehicle Antenna; 5Mtr cable terminated SMA male - Black 1211mm

The CDX-TREME antenna series is designed to look great on your vehicle with a similar size and height profile to match similar products. The CDX8197-B antenna covers the full range of cellular bands from 5G LTE band (3400-3800MHz) to the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz).

It is ideal for use with cellular modems and active repeaters, especially when the signal is poor.

The outstanding performance of the CDX-TREME series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern, bandwidth, and mechanical performance. The result is a unique antenna able to deliver across extended mobile phone networks, to perform longer and further in the harshest of Australian conditions.

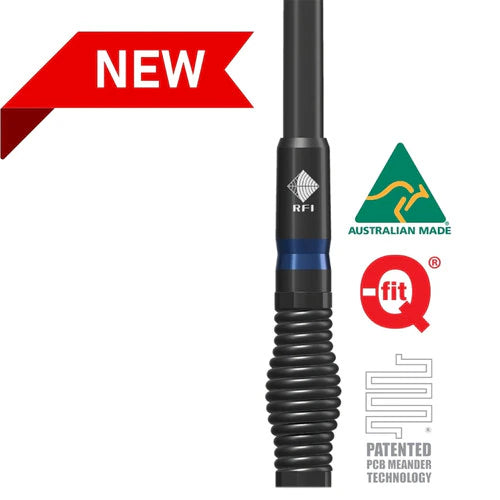

The CDX-TREME product is designed to look great and perform in the toughest of Australian conditions. It includes an integrated spring with threaded stud/nut for easy installation on vehicles. The CDX-TREME series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.

Key Features:

- Supplied with larger rugged spring assembly for the toughest of regional and commercial conditions.

- Mounting and antenna designed for high vibration, low maintenance applications with whip protection locking mechanism.

- Patented PCB-based collinear design offering the ultimate in pattern and gain stability.

- Ideal for regional networks with true multi-band coverage.

- Higher gain across all bands, suitable for outback and remote applications.

- Q-Fit® removable whip system for ease of removal in low-height environments, such as multi-story car parks, car washes, or for security.

Specifications:
