RFI CDR5000 + CD34-71-00 City/Country White/Black Vehicle Bull Bar Antenna and UHF/CB 477Mhz Pack - 94cm / 33cm high
RFI CDR5000 + CD34-71-00 City/Country White/Black Vehicle Bull Bar Antenna and UHF/CB 477Mhz Pack - 94cm / 33cm high is backordered and will ship as soon as it is back in stock.

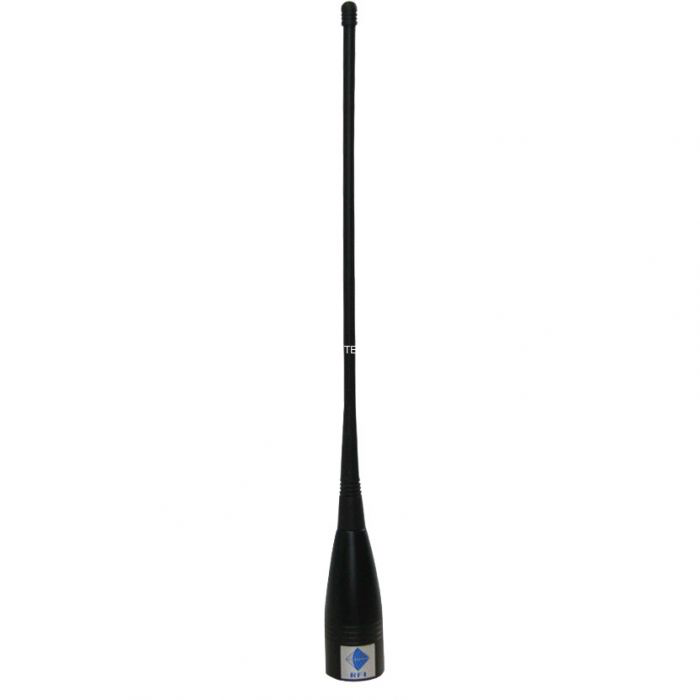

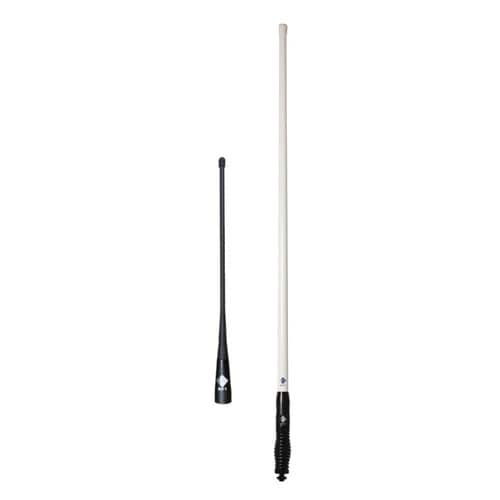

RFI City/Country Pack; CDR5000-WB 5dBi Black UHF / CB 477Mhz White/Black Collinear Vehicle Bull Bar Antenna; 5Mtr cable terminated FME (F) includes a UHF (M) adapter - 976mm high, plus RFI CD34-71-00 shorter whip to use around City or in low height areas - Black Q-Fit® 325mm high
The CDR5000 series is a light weight version of our CDQ5000 which is ideal for mounting on guards, mirrors or bull bars. It utilises our Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability and employs our Q-Fit® removable whip system.
CDR5000-WB+CD34 Features:
The antennas we supplied with our medium duty spring assembly which included 5 metres of low loss 9006 cable terminated with an FME female connector and includes a UHF to FME adaptor. Also includes an additional CD34 whip (black).
Features:
• Patented PCB based Meander™ collinear design offering the ultimate performance & robustness.
• 5 dBi gain across the full 477 MHz UHF CB band.
• Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security
• Totally ground plane independent
- 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Specifications:
| Brand | RFI |
| Mounting | 13mm threaded stud |
| Frequency MHz | 477 |
| Tuned Bandwidth | Full. No tuning required |
| Radome Diameter Mm | 16 |
| VSWR | <1.5:1 |
| Nominal Gain [dBi] | 5-Apr |
| Power [W] | 25 |
| Frequency Range [MHz] | 470 - 490 |
| Connector | FME(F), UHF(M) |
| Band | 477MHz |
| Tuning | Supplied pre-tuned |
| Cable And Connector | 5.0m 9006 supplied terminated with an FME female connector and supplied with an FME to UHF adapter |
| Whip Length mm | 930 / 410 |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Packaging | Retail style plastic bag with header card |
| Antenna Type | Omni |
| Antenna Application | Vehicle Antenna |
| Antenna Configuration | SISO |
