RFI CD34-71-00 UHF CB 477Mhz 4dBi Mopole Ground Independant Antenna Whip Only - 330mm high
The CD34 Series Mopole antenna is specifically designed to be used in a variety of mounting positions such as a vehicle mirror, gutter or roof rack. Mounting in such positions, the CD34 is the ideal substitute for an antenna which would normally need to be mounted in the centre of a metal roof to obtain maximum efficiency.
The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application.

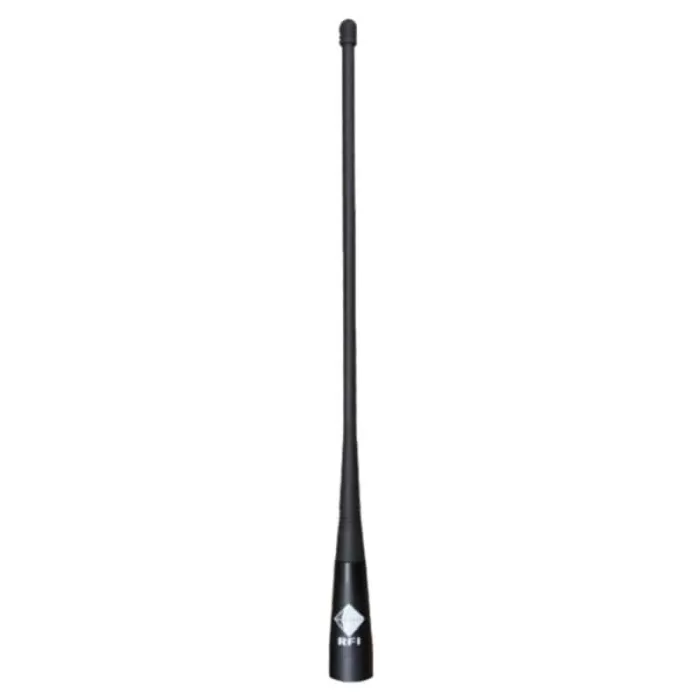

This CD34-71-00 is the (330mm) whip only and screws onto a UHF / MBC / SO239 connectors / base.
Features:
- Ground plane independent design allows installation in almost any location
- Robust UV stable base & flexible whip
- 330mm
- Screws onto UHF / MBC / SO239 connector
- Rugged antenna suitable for most any application
Specifications:
| Brand | RFI |
| Frequency MHz | 476 - 477 |
| Tuned Bandwidth | Full. No tuning required |
| VSWR | <1.5:1 |
| Nominal Gain [dBi] | 4 |
| Power [W] | 50 |
| Frequency Range [MHz] | 476 - 477 |
| Band | 477MHz |
| Tuning | Supplied pre-tuned |
| Whip Length mm | 330mm |
| Whip Material | Stainless Steel braid over moulded with UV resistant TPU |
| Antenna Type | Omni |
| Antenna Application | Vehicle Antenna |
| Frequency Band | UHF 380-520 MHz |
| Antenna Configuration | SISO |
