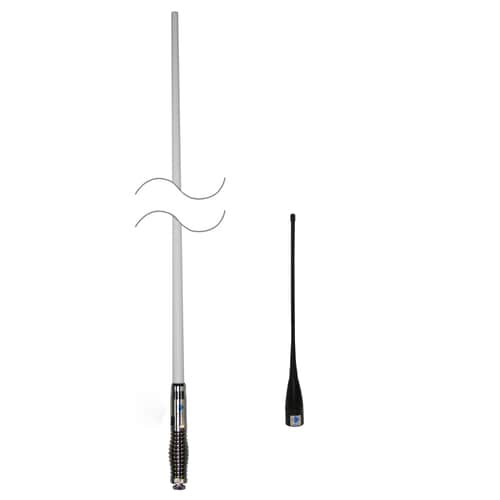

RFI CDQ8000 + CDQ34 City/Country Pack UHF/CB 477Mhz White/Black Q-Fit® Vehicle Bull Bar Antenna Pack - 208cm / 34cm high
RFI CDQ8000 + CDQ34 City/Country Pack UHF/CB 477Mhz White/Black Q-Fit® Vehicle Bull Bar Antenna Pack - 208cm / 34cm high is backordered and will ship as soon as it is back in stock.
RFI City/Country Pack; CDQ8000-W 8dBi White UHF / CB 477Mhz Black Q-Fit® Collinear Vehicle Bull Bar Antenna; 5Mtr cable terminated FME (F) includes a UHF (M) adapter - 2080mm high, plus RFI CDQ34-71-00 shorter whip to use around City or in low height areas - Black Q-Fit® 325mm high
The CDQ8000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features CDQ8000-W:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 8 dBi (CDQ8000) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent
- 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Specifications:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 8 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar |
| Radome Diameter mm | 22.5 - 15.6 |
| Packaging | Clear hanging bag |
| VSWR | <1.5:1 |
| Length mm | 2080mm |
| Mounting |
Threaded Stud |
CDQ34-71-00 Whip only (Black)
The CDQ34-71-00 whip is designed to be used as a short, low gain whip in place of the CDQ5000 or CDQ8000 Q-Fit® whips.
Being only 325mm long, the CDQ34-71-00 whip is ideal for use urban environments, when a longer high gain whip in not required or when low heights are an issue. The CDQ34-71-00 can also be used in extremely rugged situations where overhanging branches could damage longer high gain antennas, yet still providing good radio coverage and the convenience to switch back to a high gain whip for longer range communications.
Features:
• Compact stylish design
• Connects directly to Q-Fit® UHF spring assemblies in place of CDQ5000 & CDQ8000 whips
• Flexible whip section
