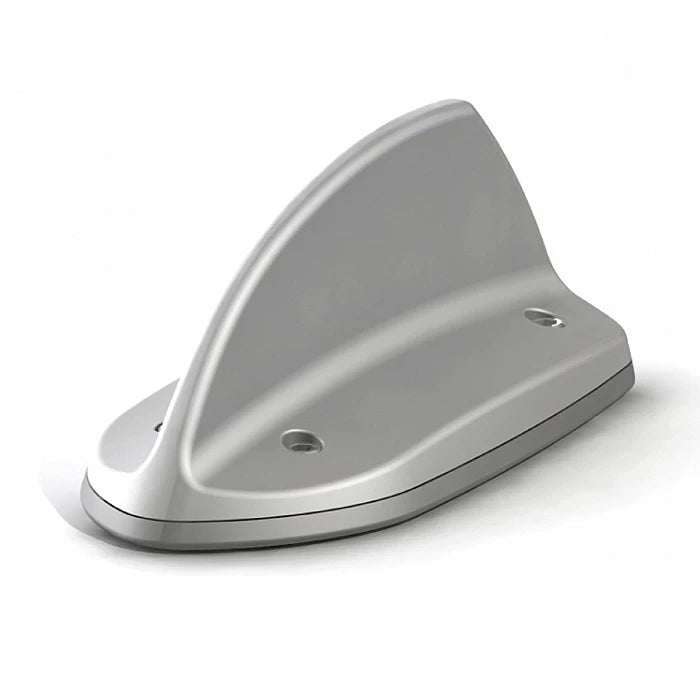

RFI TLA4100 5G Low Profile Mobile Transit Antenna (698Mhz - 5800MHz)

Name: RFI TLA4100 5G Low Profile Mobile Transit Antenna (698Mhz - 5800MHz)
Brand: RFI
SKU: TLA4100
Price: 214.00 AUD
Availability: InStock

$214.00 $220.00

Tax included Shipping calculated at checkout.

RFI | SKU: TLA4100

⚡ FAST SHIPPING ITEM ⚡

This one’s on the shelf and ready to go. Express shipping available at checkout.

Delivery and Shipping

We use AusPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)

Hurry! Order before 2pm for same day dispatch!

RFI 5G TLA4100 low profile antenna is designed specifically for Caravan and RV, Bus, Rail and Light Rail applications or any other similarly demanding transit or stationary applications.

The TLA4100 operates in all cellular bands globally plus the 2.4 & 5.8 GHz ISM bands.

Designed utilising a high impact, UV stabilised low Flame, Smoke and Toxicity (FST) radome, the TLA4100 is IP68 rated to fully protect against the ingress of dust and water.

Designed to meet the following European Traction Industry Standards:
• NF-F-16-101/102 (materials standard)
• EN50155 (vibration standard)
• EN50124-1 (electrical isolation standard)
• Functions with or without a ground plane* * Nominated gain achieved using a 1m2 ground plane.

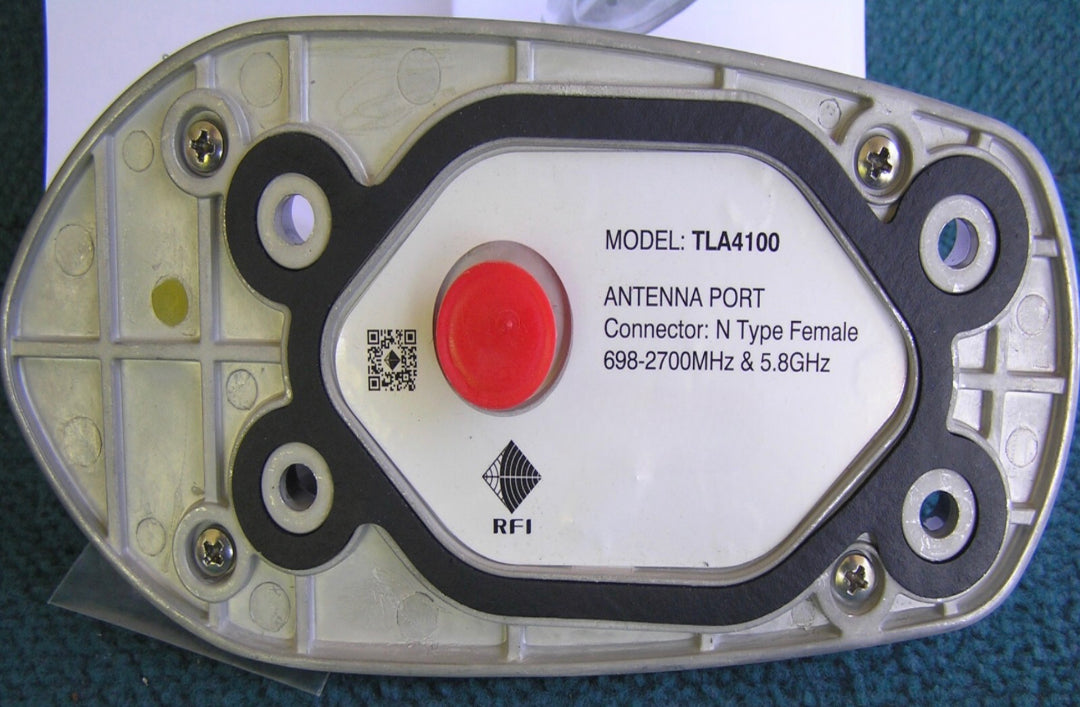

The TLA4100 features a N flange connector integrated into its underbelly.
No cable supplied.

Specifications:

Band	698-3800Mhz & 5700-5800MHz
Frequency Range	698-960 MHz / 1710-2170 MHz / 2400-2700 MHz / 5700-5800 MHz
Power w	50
Nominal Gain Dbi	5 @ 698 – 960MHz / 6 @ 1710 – 2700MHz / 3 @ 2400-2700MHz / 6 @ 3400-3800Mhz / 7 @ 5700-5800MHz
VSWR	<2:1
Termination	Antenna Port: Fixed N-female
Tuned bandwidth	Full. No tuning required
Brand	RFI
Dimensions	21 × 11 × 11 cm

Frequency Bands

Network Compatibility	Yes	Gain
Telstra 4GX (700 MHz)		5 dBi
Optus 4G+ (700 MHz)		5 dBi
Telstra Next-G™ (850 MHz)		5 dBi
Vodafone 4G+ (850MHz)		5 dBi
Telstra/Optus/Vodafone 4G (1800 MHz)		6 dBi
802.11 b/g/n/ac Wi-Fi (2400 MHz)		3 dBi
Telstra 4G B7 (2600 MHz)		3 dBi
All Carriers - 5G N78 (3500MHz)		3 dBi
802.11a/n/ac (5800 MHz)		7 dBi
UNII-3 (5800MHz)		7 dBi
