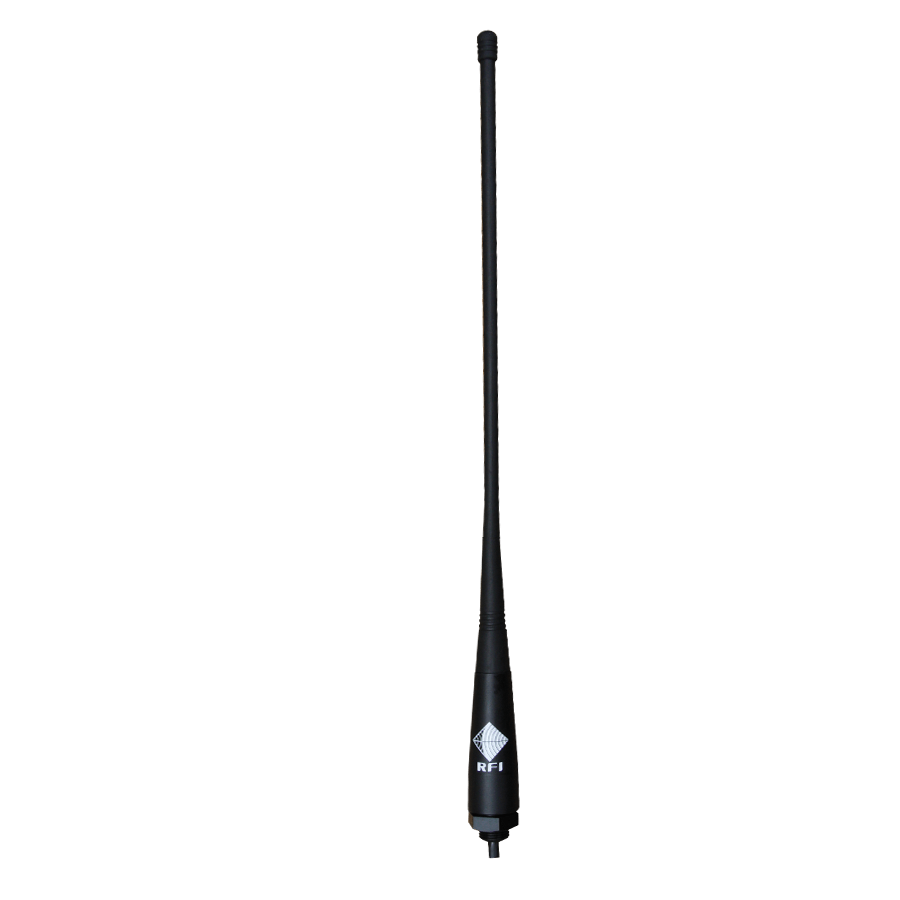

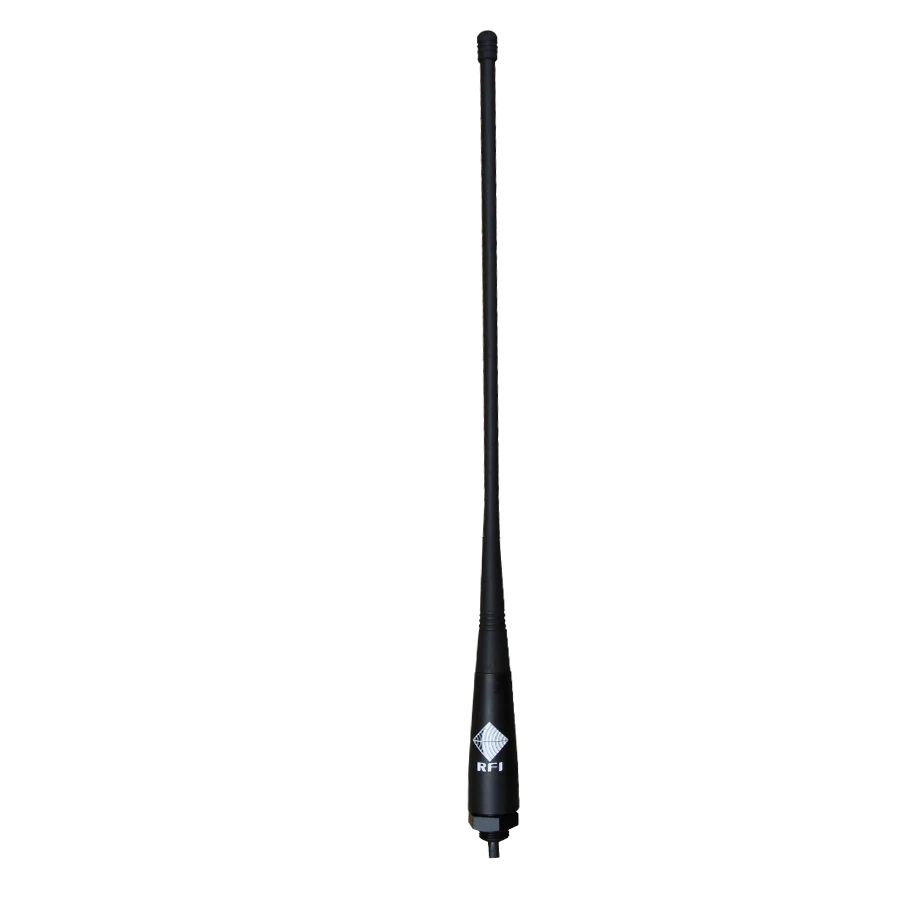

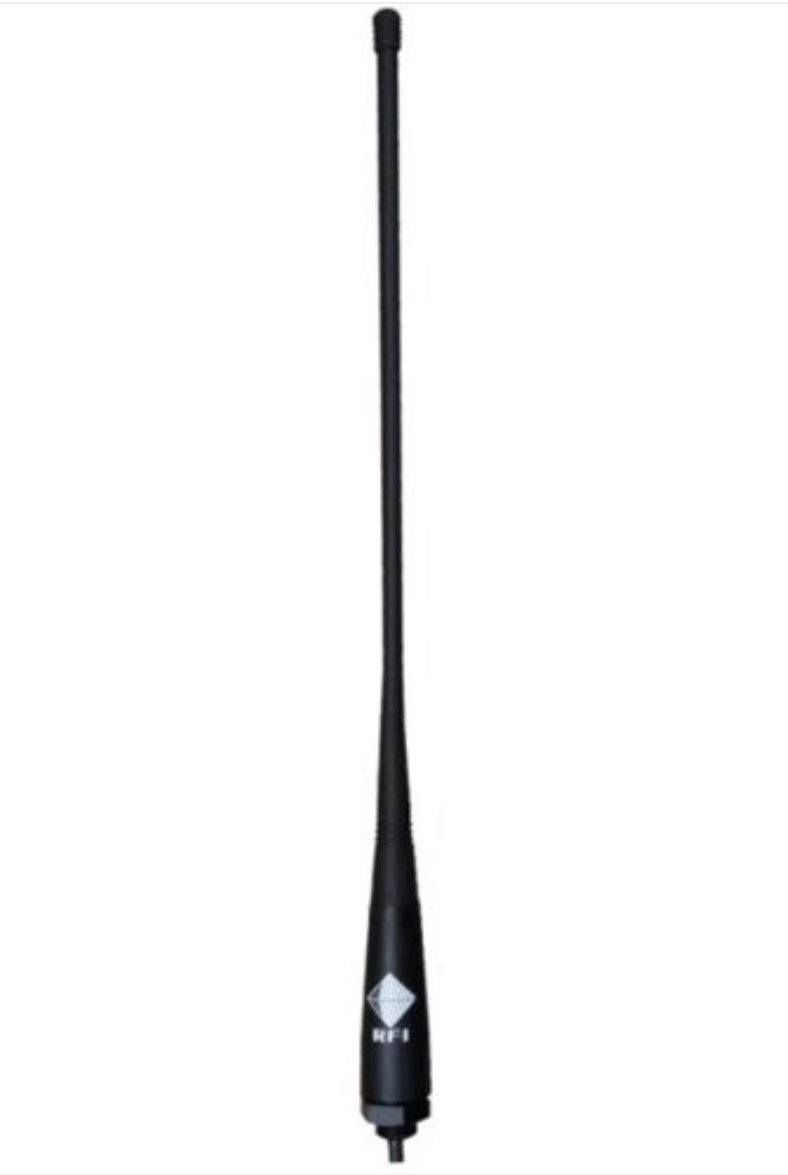

RFI CD34-71-73 UHF / CB 477MHz 4dBi Mopole Antenna; Stud Mount 5m FME(F) with UHF(M) Adaptor
RFI CD34-71-73 UHF / CB 477MHz 4dBi Mopole Antenna; Stud Mount 5m FME(F) with UHF(M) Adaptor is backordered and will ship as soon as it is back in stock.
⚡ FAST SHIPPING ITEM ⚡
⚡ FAST SHIPPING ITEM ⚡
- This one’s on the shelf and ready to go. Express shipping available at checkout.
Delivery and Shipping
Delivery and Shipping
We use AusPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)
RFI CD34-71-73 4dBi UHF / CB 477 MHz Mopole™ Antenna - Stud Mount 5.0 Mtr cable with FME connection with UHF (M)adapter
The CD34 Series Mopole antenna is specifically designed to be used in a variety of mounting positions such as a vehicle mirror, gutter or roof rack. Mounting in such positions, the CD34 is the ideal substitute for an antenna which would normally need to be mounted in the centre of a metal roof to obtain maximum efficiency.
The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application.
Features:
The CD34-71-73 comes with a Stud mount base. The base has a 5 metres RG58 C/U cable & factory terminated with a FME female connector for ease of installation. Also included is a FME male to UHF male adaptor for connection to all UHF CB radios.
- Ground plane independent design allows installation in almost any location
- Robust UV stable base & flexible whip.
- Stud mount base with 5.0Mtr cable terminated with an FME (female) connection (antenna also includes FME male to UHF male adaptor)
Specifications:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 4 |
| Tuning | Supplied pre-tuned |
| Power W | 50 |
| Cable and Connector | 5.0m RG58 low loss cable fitted with FME female connector plus supplied with an FME male to UHF male adaptor. |
| Whip Material | Stainless Steel braid over moulded with UV resistant TPU |
| Suggested Installation | Bracket |
| Whip Length mm | 330 |
| VSWR | <1.5:1 |
| Mounting | 13mm threaded stud & stepped nut |
