Victron Starlink Mini 12V to 30V DC Step-Up Converter Power Supply via Anderson Plug

Victron Starlink Mini 12V to 30V DC Power Supply with Anderson Plug & waterproof Starlink Mini socket.

Transform your Starlink Mini experience with our 12V to 30V DC converter. This specialized power supply efficiently steps up voltage to compensate for potential drops in extended cable runs. Features include compatible Anderson plug connectivity and a weatherproof Starlink Mini socket, allowing seamless integration with your existing 15m DC Mini cable for reliable 12V power source operation.

Power Your Starlink Mini on the Go

The Victron Starlink Mini 12V to 30V DC converter delivers an optimal solution for Starlink Mini users requiring 12V battery power integration. By elevating input voltage from 12V to 30V, this specialized unit effectively mitigates the voltage drop limitations that typically restrict DC cable length to just 3 meters. This engineering approach enables utilization of significantly extended power cables while maintaining proper voltage delivery to your Starlink Mini system, even when operating from standard 12V battery sources.

Maintain connectivity in remote environments with this specialized Victron 12V to 30V DC converter engineered specifically for Starlink Mini systems. This technical solution delivers precise voltage conversion from standard 12V sources to the requisite 24-30V DC operating range, eliminating the need for inefficient inverter configurations or supplementary adaptation hardware. Optimized for deployment across diverse mobile platforms including marine vessels, off-grid installations, recreational vehicles, and 4WD expedition vehicles, this direct integration module ensures consistent performance parameters throughout varied operational conditions.

Key Features

• Reliable Power Conversion: – Built around the Victron Orion-Tr 12/24-5A (120W) Isolated DC-DC Converter, delivering clean and stable 24-30V output.
• Plug & Play Setup: – Simple installation with 50A Anderson Plug for quick connection to your 12V power source.
• Secure Starlink Mini Connection: – Includes Starlink Mini Power Socket with Waterproof Gland, ensuring a safe and weather-resistant connection.
• Heavy-Duty Cabling: – Supplied with 30cm power cables for both the Anderson plug and Starlink Mini power socket, allowing for easy integration into your setup.
• Built for Adventure: – Designed for off-grid travel, this system is rugged, efficient, and built to handle demanding environments.

Unlike other solutions, this setup eliminates the need for bulky inverters, reducing power loss and making your Starlink Mini more efficient on 12V setups. Whether you’re travelling, camping or off-grid, this power supply ensures you stay connected when you need it most.

Quick Specs: Orion-Tr 12/24-5A (120W)

• Input Voltage Range: 8-17 V
• Nominal Output Voltage: 24.2 V
• Adjustable Output Voltage Range: 20-30 V
• Continuous Output Current (at 25°C): 5 A
• Maximum Output Current (for 10 seconds): 6.3 A
• Continuous Output Power (at 25°C): 120 W
• Efficiency: 88%
• Operating Temperature Range: -20 to +55°C (with derating above 40°C)
• Protection: IP43 when installed with terminals facing downwards
• Weight: .58 kg (1.28 lbs)
• Dimensions: 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 inches)
• Connection Type: Screw terminals
• Galvanic Isolation: 200 VDC between input, output, and case

Simple Installation

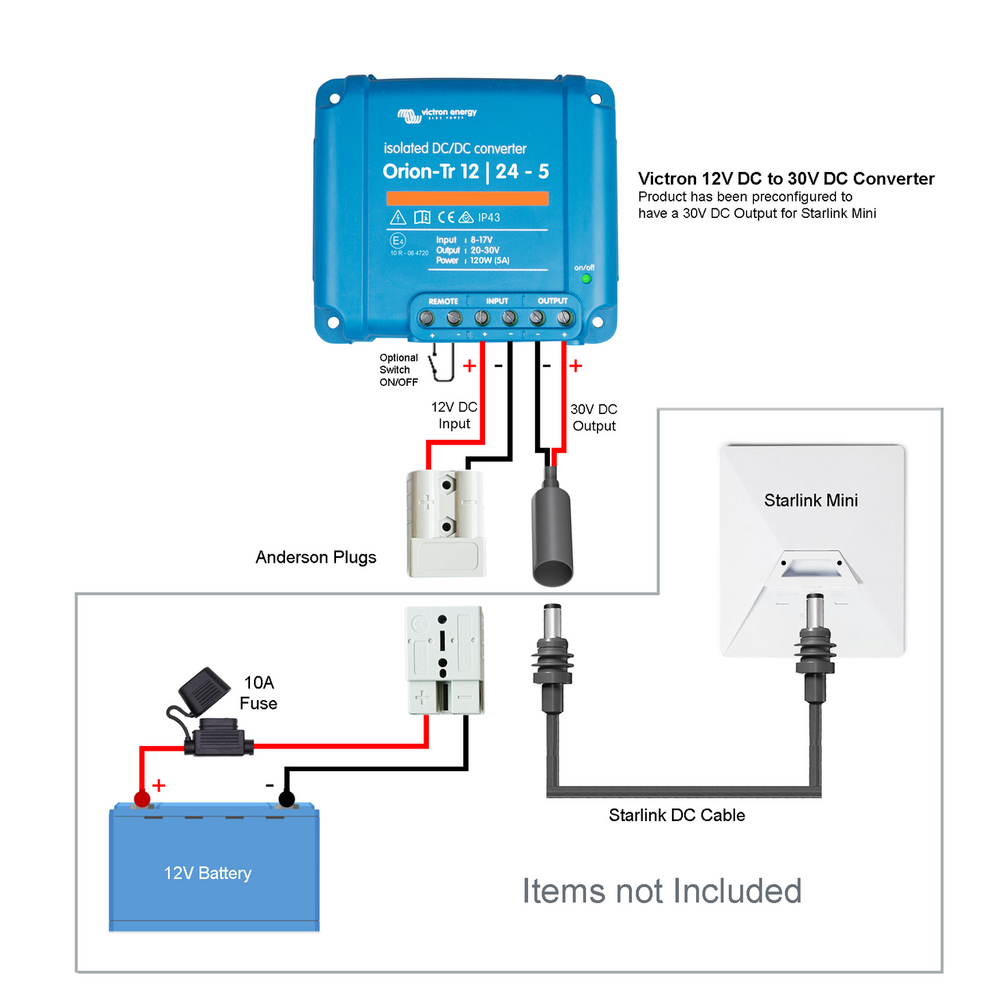

1. Connect the Anderson Plug to your 12V battery or power system.
2. Connect the female DC socket to your 15m DC cable supplied with the Mini dish using the waterproof gland.
3. Plug in your Starlink Mini to the other end of the cable – and you’re ready to go!

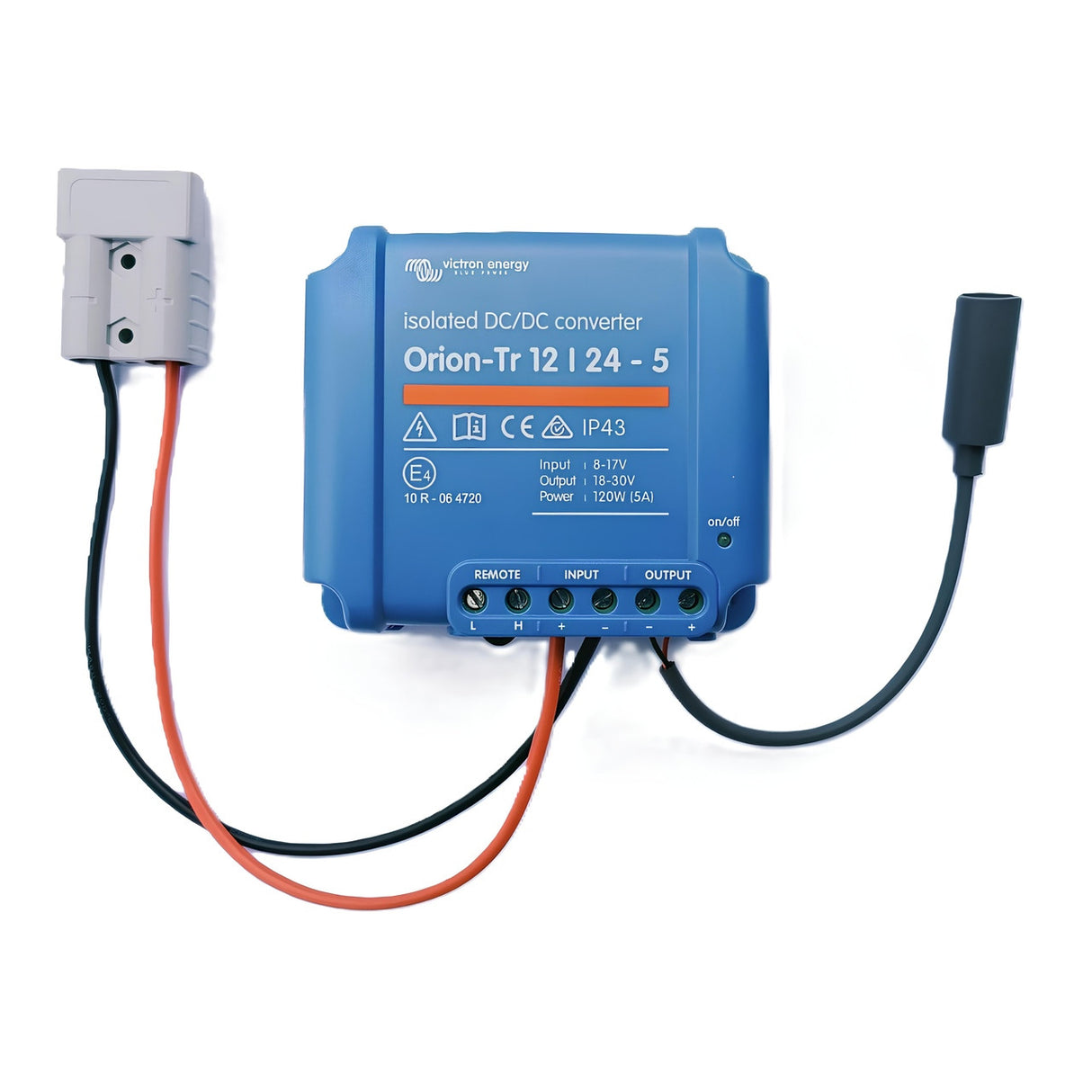

What’s Included?

• Victron Orion-Tr 12/24-5A (120W) Isolated DC-DC Converter
• 30cm Power Cable – 50A Anderson Plug (Input)
• 30cm Power Cable – Starlink Mini Power Socket (Output)

Note: If you want to have ethernet access to your Starlink Mini and power it at the same time, we recommend you use the 5G BOOSTERS Starlink Mini DC/DC Power Converter . It will power Mini via PoE and also give you ethernet access to add to a network or a WiFi access point ot router.
