RFI CD8197-B 7.5 dBi 4G/LTE/5G Black Vehicle Bull Bar Antenna - 1152mm

Name: RFI CD8197-B 7.5 dBi 4G/LTE/5G Black Vehicle Bull Bar Antenna - 1152mm
Brand: RFI
SKU: CD8197-B
Price: 165.00 AUD
Availability: InStock

$165.00

Tax included Shipping calculated at checkout.

RFI | SKU: CD8197-B

⚡ FAST SHIPPING ITEM ⚡

This one’s on the shelf and ready to go. Express shipping available at checkout.

Delivery and Shipping

We use AusPost Business, StarTrack or Border Express to ship orders across Australia. Orders placed before 2pm weekdays will be dispatched same day* (*Mon-Fri AEDT-subject to availability)

Hurry! Order before 2pm for same day dispatch!

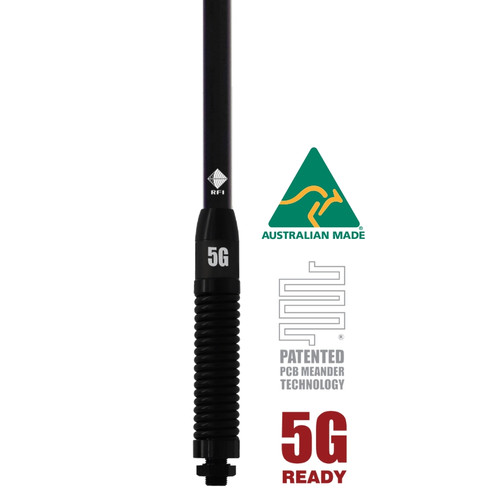

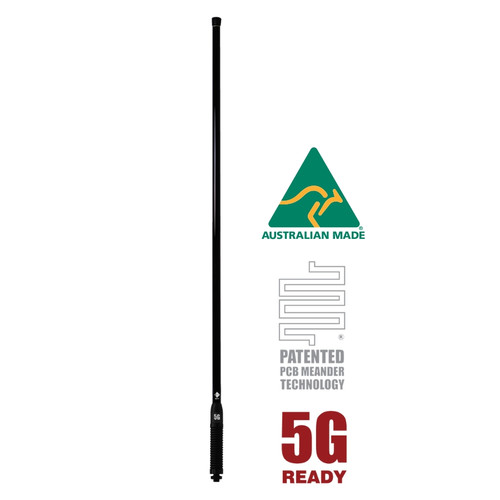

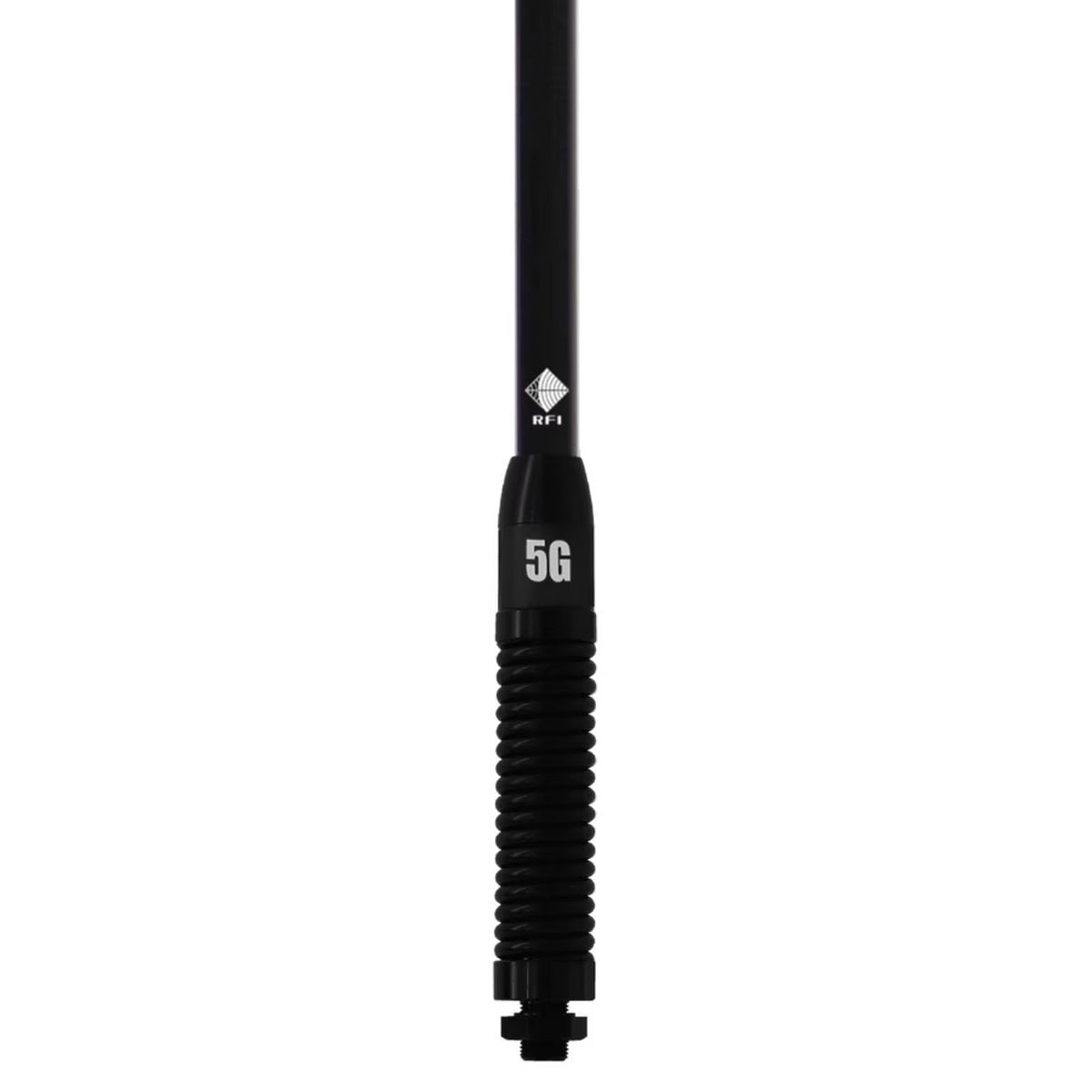

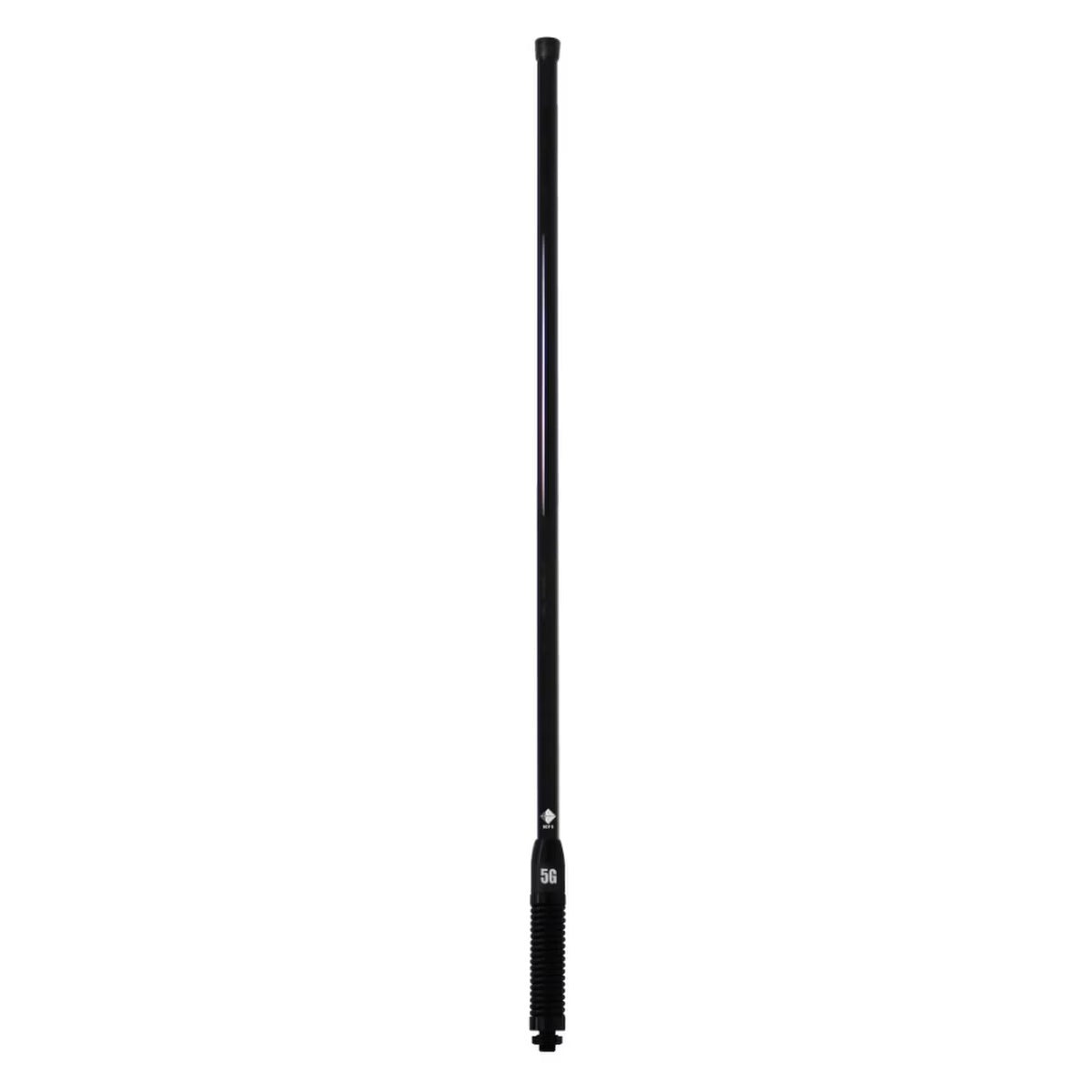

RFI CD8197-B 7.5dBi 4G/LTE/5G Collinear Bull Bar Vehicle Antenna 698-3800MHz; 5Mtr cable terminated SMA male - Black 1152mm

The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.

Key Features:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.

- Ideal for new 5G/LTE networks with true multi-band coverage.

- High gain across all bands making it suiting fringe and rural applications.

Specifications

Packaging	Retail Hang Sell Bag
Whip Material	Fibreglass (Black)
Cable And Connector	5m RG58 (9006) Low Loss Cable Terminated with SMA(M) Connector
Frequency Range	1710-2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance	50
Power w	10
Nominal Gain Dbi	7.5 / 4.5 / 5.5 / 6.5
Polarisation	Linear
VSWR	<2.5:1
Tuned bandwidth	Full
Horizontal Beamwidth	Omni-directional
Frequency MHz	698-960 / 1710-2170 / 2300-2700 / 3400-3800
Length [mm]	1152mm
Brand	RFI
Weight [kg]	0.84
Height [mm]	1152mm
