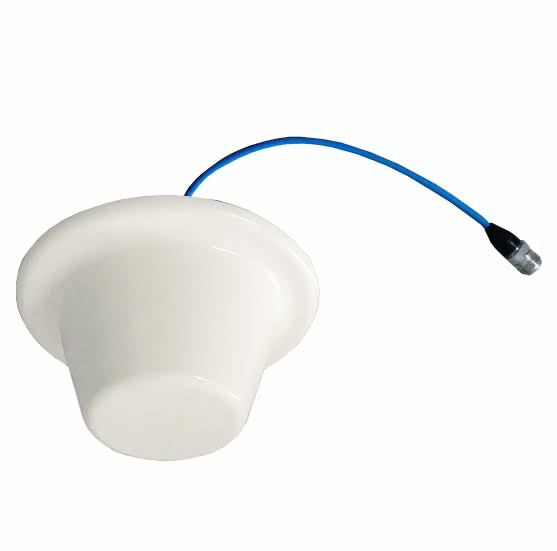

Cel-Fi Ceiling Dome 698-4000 2/5dBi Antenna -150dBc PIM; N Female
The Blackhawk 4G-5G Ceiling Dome Antenna, 698 to 4000 MHz offers exceptional performance for both 4G and 5G networks. This high-gain antenna is ideal for enhancing signal strength within a range of residential, commercial, and industrial mobile broadband applications on any mobile network.
This is the ideal indoor antenna for Cel-Fi repeater systems. Indoor dome antennas are designed to be mounted to the ceiling of your building to provide consistently distributed mobile phone service from your Cel-Fi repeater/booster. The antenna is compact with a visually unobtrusive design similar to a smoke alarm.
The Blackhawk Omni Ceiling Antenna will provide the perfect solution for voice and data applications. Perfect for repeater applications that require a 360° beamwidth for complete internal coverage.
Features:
- 2 dBi gain across lower bands 698-960 MHz
- 5 dBi gain across upper bands 1710-4000 MHz
- ABS plastic and aluminium construction
- Threaded bulkhead mount for ceiling installation
- Short cable tail with N female connector
- Ideal for Cel-Fi GO repeater marine/ caravan applications
Specifications:
|
ANT-BH-OM-C |
|
698-960MHz / 1710-4000MHz |
|
≤2.0:1 /≤1.8:1 |
|
50Ω |
|
2.0 / 5.0 dBi |
|
Vertical Linear |
|
360° (omnidirectional) |
|
90 / 55° |
|
≥23dB |
|
50W |
|
DC ground |
|
N Female |
|
Short tail cable |
|
0.25kg |
|
210mm×180mm×44mm |
|
ABS plastic - White |
|
Brass and aluminium |
|
-40°C~ 65°C |
