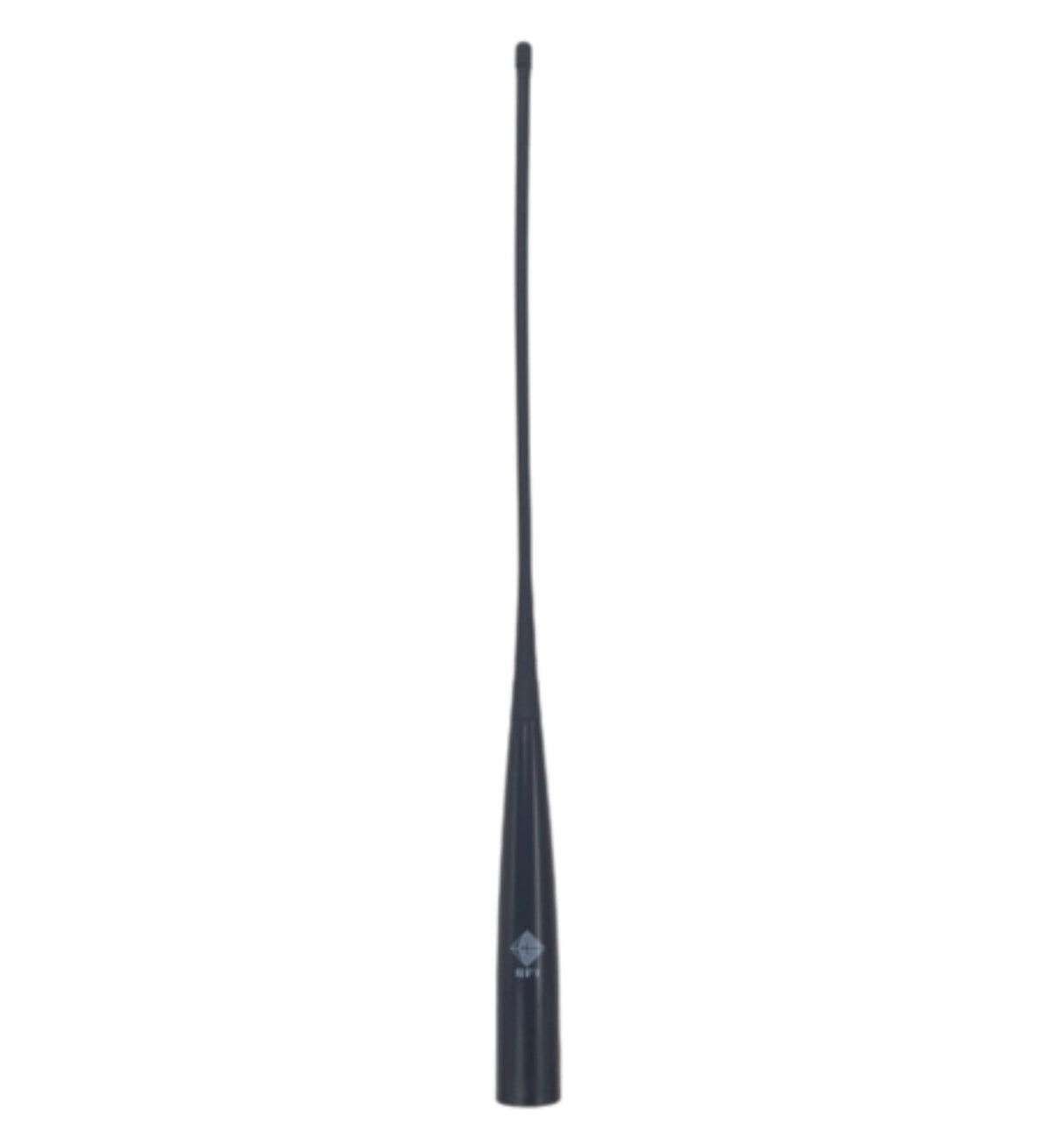

RFI CD30-148470-00 Dual Band VHF/UHF Commercial Radio Whip only - 496mm
RFI CD30-148470-00 Dual Band VHF/UHF Commercial Radio Whip only - 496mm is backordered and will ship as soon as it is back in stock.
RFI CD30-148470-00 WHIP REPLACEMENT Dual Band VHF/UHF (148-174Mhz / 400-477Mhz) Commercial Radio Antenna - Whip only - 496mm
RFI’s dual band VHF/UHF antenna supports multi-band radio technology to provide interoperability among emergency management and response personnel, regardless of the frequency band used. It provides outstanding coverage of VHF and UHF bands frequencies in an easy-to-install, no tune design.
Note: Whip-only requires MBC (SO-239) compatible interface for easy installation or upgrade (not included)
Features:
- No tune, dual band coverage of VHF (148-174MHz) and UHF (400-470MHz) frequencies
- Rugged construction for long lasting, reliable emergency response applications
- MBC (SO-239) compatible interface for easy installation or upgrade (not included)
- Excellent VSWR performance across frequencies
DESIGNED & MANUFACTURED IN AUSTRALIA.
NOTE: The CD30 is ground dependent and should be mounted on a ground plane or close to a ground plane.
Specifications:
| Maximum Power: | 40W @ VHF and 25W @ UHF |
| Impedance: | 50 Ohms |
| Band | 148-174MH 400-470MHz |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 1 / 4.5 |
| Power W | 50 |
| Whip Material | Flexible tapered stainless steel whip |
| Suggested Installation | MBC base (Not included) |
| Whip Length mm | 496 |
| VSWR | <2.0:1 |
| Mounting | MBC (PL259) base (Not included) |
